The NMR Spectrometer

Due to the limited techniques available in the early days of NMR, conventional iron cored electromagnets or ceramic permanent magnets had to be used to produce very strong magnetic fields and so field strengths were limited to about 14 kilogauss. As a result, the early NMR spectrometers could only operate at about 60 MHz. Today, very strong magnetic fields can be obtained by employing Superconducting Magnets. It is seen from Table 1, that for proton spectroscopy, magnetic fields of about 60 and 180 kilogauss respectively will allow the use of frequencies of 259 or even 750 Mhz and so, modern high-resolution NMR spectrometers operate at these frequencies. Although hardly used today, in order to illustrate the relative simplicity of the NMR instrument, the original low resolution 60 MHz permanent magnet NMR spectrometer will be briefly described.

A diagram of a 60 MHz permanent magnet NMR spectrometer is shown in figure 5.

Figure 5. A 60 MHz Permanent Magnet NMR Spectrometer

The Perkin Elmer Corporation pioneered the production of the permanent magnet, 60MHz, NMR machine in the early 1960s and a simple diagrammatic form of the instrument is shown in figure 5. This instrument includes the basic parts of all NMR spectrometers and although modern instruments have more sophisticated adjustments and electronics and employ superconducting magnets they all have the basic parts of the original 60 MHz instrument of Perkin Elmer. The first requirement is a magnet having the dimensions and strength required for the radiation frequency to be used. In the above instrument this consisted of a ceramic permanent magnet having a field-strength of about 1400 gauss. The second requirement is a coil to provide a small magnetic field that is adjusted to scan the range appropriate for the protons to be examined. This coil can vary in complexity and in the original instrument includes a series of coils (called the Golay coils (after Marcel Golay the inventor of the capillary column in gas chromatography)) that could also be used adjust the field to a maximum degree of homogeneity. The thirds requirement is an RF coil that both supplies the radiation to the sample and also senses the energy absorption at the positions of resonance. Finally there is a tube to contain the sample that is attached to an air turbine to rotate the sample at high speeds. The rotation of the sample is essential to ensure that the sample to be exposed to a magnetic field that is as homogeneous as possible. As the sample rotates, the net field experienced is the average of that swept out during a single rotation. The effect of spinning the sample on resolution is shown in figure 6.

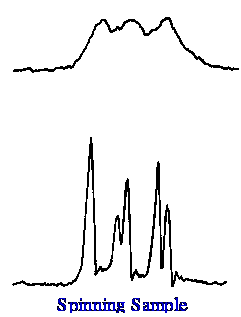

Figure 6. Spectra of 2-Methylpyrazine (aromatic protons only) Using Spinning and Non-Spinning Samples

It is seen that the effect of spinning the sample is quite dramatic and is essential as it would be impossible to obtain high-resolution spectra without using the sample spinning technique. Field homogeneity of better than one part in 109 is necessary to obtain a resolution of 1 Hz in a field of 176 500Mhz.
