Electron impact ionization is generally a fairly harsh method of ionization but the energy used to produce the ions is controllable, which is practically an advantage. The procedure usually produces a range of molecular fragments that in most cases, helps to elucidate the structure of the molecule. However, although molecular ions are often produced, which is important for structure elucidation, sometimes only small fragments of the molecule are observed, with no molecular ion. Under such circumstances, alternative ionizing procedures may need to be used. A diagram of a simple electron impact ionization source is shown in figure 2.

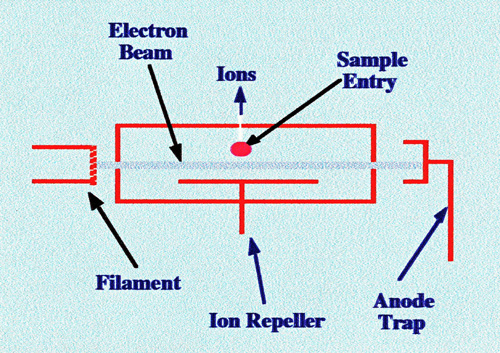

Figure 2 An Electron Impact Ionization Source

Electrons are formed by thermal emission from a heated tungsten or rhenium filament and accelerated by an appropriate potential to the anode trap. The magnitude of the accelerating potential may range from 5 to 100 V depending on the electrode geometry and the ionization potential of the substances to be ionized. The filament current can be automatically controlled to provide a constant trap anode current and, thus, maintain steady ionizing conditions. The sample is introduced into the gas stream at the center of the electron beam. The ions formed are repelled by a suitable potential, through a hole in the wall of the ion source enclosure and, thus, pass into the accelerating field of the mass spectrometer. A more detailed and practical layout of an electron impact source is shown in figure 3. The central stainless steel block is made from stainless steel and the sample is introduced through a small hole in the center. Molecules move into the ionization chamber where they meet a stream of energetic electrons and ions are produced. These ions are repelled into the focus area by suitable potentials being applied to repeller plates 1 and 2. The positive ions are accelerated by the repeller plates and the negatively charged accelerator electrode and pass into the analyzer unit. A magnetic field of a few hundred gauss is often maintained along the axis of the electron beam, to confine the electrons to a narrow helical path. In general only about 0.1% of the molecules entering the ion source are ionized.

The optimum ionization energy of the electron varies with different compounds, but an average value appears to lie between 50 and 100 eV. The approximate relationship between ion current and electron energy takes the form shown in figure 4. The ionizing energy of the electrons is controlled by the accelerating potential applied to the anode in the ion source. This facility is important, as it allows the energy of the electrons to be adjusted so that optimum fragmentation will take place.

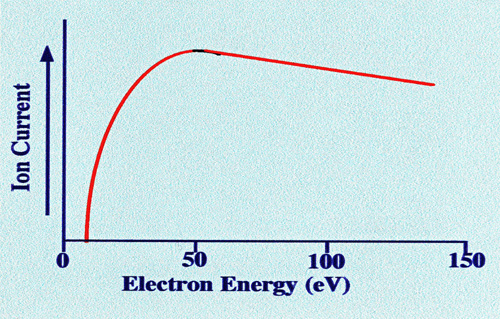

Figure 4. The Approximate Relationship Between Ion Current and Electron Energy

Optimum fragmentation will provide the maximum information to allow the structure of the compound to be elucidated. An example of the effect of electron energy on the fragmentation pattern of a compound is shown in figure 5. It is seen from the pattern obtained at low energies (ca 14 electron volts) that a large parent ion is produced but relatively few fragments. This means that the molecular weight of the material could be fairly easily identified but its structure would not be easily identifiable as there were very few fragments to work with.

Figure 5. Fragmentation Patterns for a Molecule Ionized with Electrons Having Different Energies

In contrast, at high electron energies (ca 60 electron volts) there are a large number of fragments, particularly at low molecular weight, but the parent ion is hardly discernible. This means that although some of the secondary structure of the molecule may be revealed, the lack of a definite parent ion would again make the total molecular structure difficult to identify. However, at mid–electron energies (ca 20 electron volts) numerous fragments together with an unambiguous parent ion are produced, providing ample information for structural identification.

It is seen that the electron energy in electron impact ionization is an important parameter on which to optimize, to ensure that the best possible data is generated for structure elucidation. If a more gentle form of ionization is required, however, Chemical Ionization should be used.
