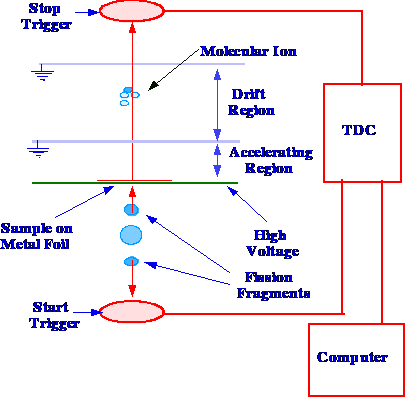

Plasma desorption is achieved by the use of a radioactive source, the fission particles being used to ionize the sample. Employing 252Cf as the source, this ionization technique can be used with the time of flight (TOF) mass spectrometer in a rather clever manner. 252Cf has a half-life of 2.7 years and decays giving an alpha particle and two charged fission fragments simultaneously emitted in opposite directions. Typically a pair of fission fragments might be 106Te and 142Ba with energies of 104 and 79 MeV respectively. A diagram of the plasma desorption apparatus is shown in figure 11.
The sample is placed on a thin aluminum sheet (or a sheet of aluminized polyester film) that is connected to a high positive potential (assuming the sample ions will be positively charged). When fission occurs, one particle strikes the sample and produces ions, while the other, emitted in the opposite direction, is sensed by the trigger detector and starts the time of flight measurement.
The ionized sample molecule or fragment is accelerated to its characteristic velocity, passes through the drift region of the spectrometer and is finally sensed by the stop sensor, which arrests the time measurement. This procedure will be better understood when the TOF mass spectrometer is discussed in detail,
The yield of sample ions is very low and so a large number of spectra need to be collected, which may take several minutes.
